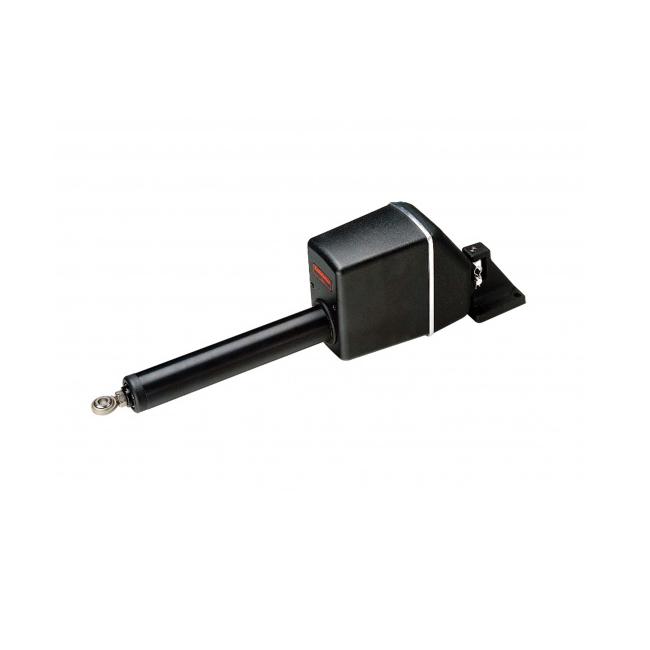

Short Shaft Linear Drive-Type 2, 12V, Raymarine (M81131)
$3,022.59
Short Shaft Linear Drive-Type 2, 12V, Raymarine (M81131)
$3,022.59
* Prices are in Canadian dollars. Taxes and shipping not included.
Short Shaft Linear Drive-Type 2, 12V, Raymarine (M81131)
- Our most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.
- A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.
Specifications:
|
|
|
||
|
|
|||
|
Drive Type |
Type 1 |
Type 2 Short |
|
|
Part Number |
12V: M81130 |
12V: M81131 |
|
|
Maximum boat displacement |
11,000 kg (24,000 lb) |
15,000 kg (33,000 lb) |
|
|
Peak thrust |
295 kg (650 lb) |
480 kg (1,050 lb) |
|
|
Maximum stroke |
300 mm (12") |
300 mm (12") |
|
|
Hard-over to hard-over times |
11 seconds |
11 seconds |
|
|
Maximum rudder torque |
735 nm (6,500 lb.in) |
1,190 nm (10,500 lb.in) |
|
|
Power consumption |
18-36 W |
48-72 W |
|
|
Corepack used |
ACU-200 |
ACU-400 |
|
