GPSMAP 943-Garmin (010-02366-01)
$1,819.99
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)
GPSMAP 943-Garmin (010-02366-01)

GPSMAP 943-Garmin (010-02366-01)

$1,819.99

Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

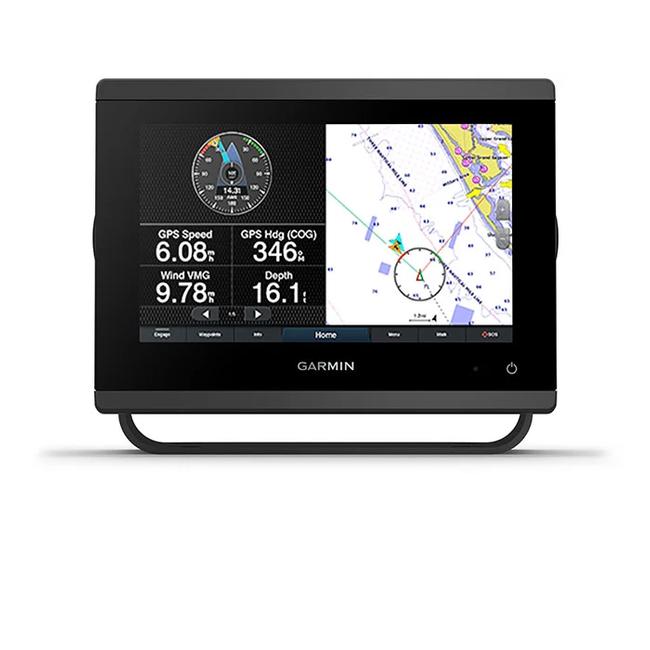

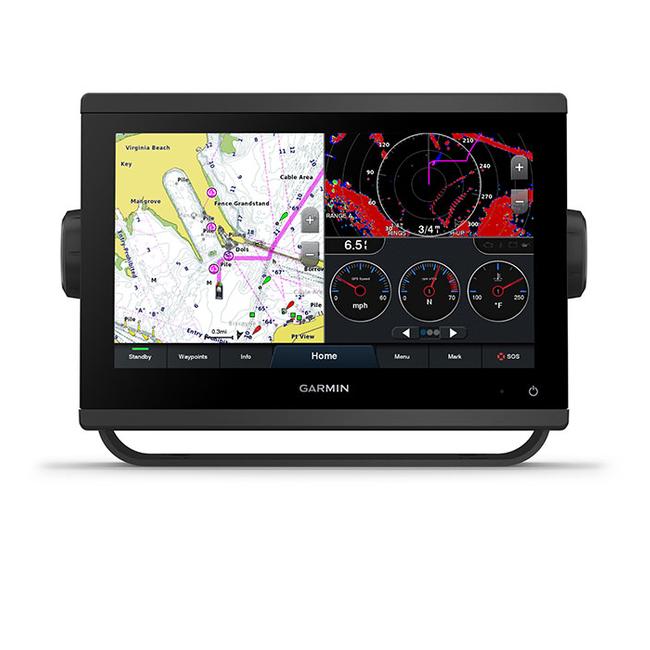

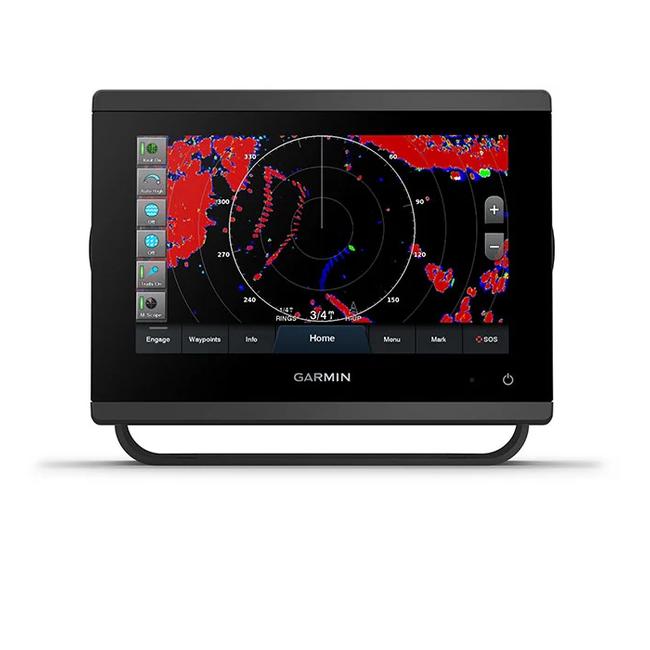

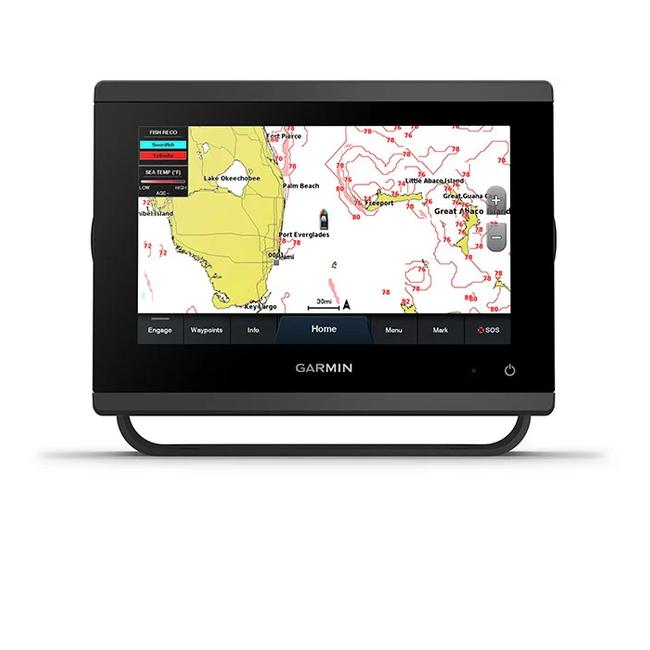

GPSMAP 943-Garmin (010-02366-01)

Non sonar with preloaded BlueChart G3 US and US LakeVu G3 (Saint Lawrence River included)

  • Improved 9-inch high-resolution intuitive touchscreen controls, offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES: View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more4.

  • NMEA 2000 and NMEA 0183 support for network connectivity, including autopilots, digital switching, weather, FUSION-Link, VHF, AIS and more
  • Garmin Marine Network support for sharing sonar, including Panoptix™ sonar, maps, user data, radar and IP cameras among multiple units
  • Preloaded U.S. LakeVü g3 inland maps and BlueChart g3 coastal charts
  • J1939 CONNECTIVITYNow you can connect your chartplotter to different kinds of engines, including Yamaha engines.
  • ONEHELM™ FEATURE : This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

In the box:

  • GPSMAP 943 chartplotter
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
PHYSICAL DIMENSIONS 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
DISPLAY SIZE

7.8" x 4.4"; 9.0" diagonal

(19.9 x 11.2 cm; 22.9 cm diagonal)

DISPLAY RESOLUTION 1280 x 720 pixels
DISPLAY TYPE WXGA IPS display
WEIGHT

3.6 lbs (1.6 kg)

WATER RATING IPX7
MOUNTING OPTIONS Bail, flush or flat
POLARIZED SUPPORT
POWER CONSUMPTION

Max power usage at 10 Vdc: 22 W

Typical current draw at 12 Vdc: 1.3 A

Max current draw at 12 Vdc: 1.8 A

ANTENNA Internal or external over NMEA 2000
RECEIVER 10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS

1

PRELOADED MAPS

BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps)

ACCEPTS DATA CARDS

2 microSD™ cards (back of unit)

WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES 100
TIDE TABLES  YES
GARMIN RADAR COMPATIBLE
GARMIN SONAR COMPATIBLE

Yes (with external black box, sold separately)

GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)  YES
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) YES
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) YES
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS YES
GSD™ BLACK BOX SONAR SUPPORT YES
GCV™ BLACK BOX SONAR SUPPORT YES
ACTIVECAPTAIN COMPATIBLE YES
WIRELESS REMOTE COMPATIBLE YES
CLEARVÜ

Yes (with external black box, sold separately)

NMEA 2000® COMPATIBLE
NMEA 0183 INPUT PORTS

1 (Differential)

NMEA 0183 OUTPUT PORTS

1 (Differential)

WIRELESS CONNECTIVITY  YES
J1939 COMPATIBLE YES
ADDITIONAL

USB port: 1
